Permanent Anti-static Table Mats (Green)

●Compliant to ANSI/ESDA S20.20.
●Performance: persistence, stability, environmental friendliness, safety.
●The anti-static performance will not influenced by natural conditions such as temperature and humidity, which will effect the static discharge effect.
●Long service life(Anti-static attenuation shall be no less than 5 years) and stable static discharge.
●Short static discharge time≤0.5S.
●Environmental protective and no bad smell.

E-mail: guodadz@163.com

Get Free Quote

Product Details

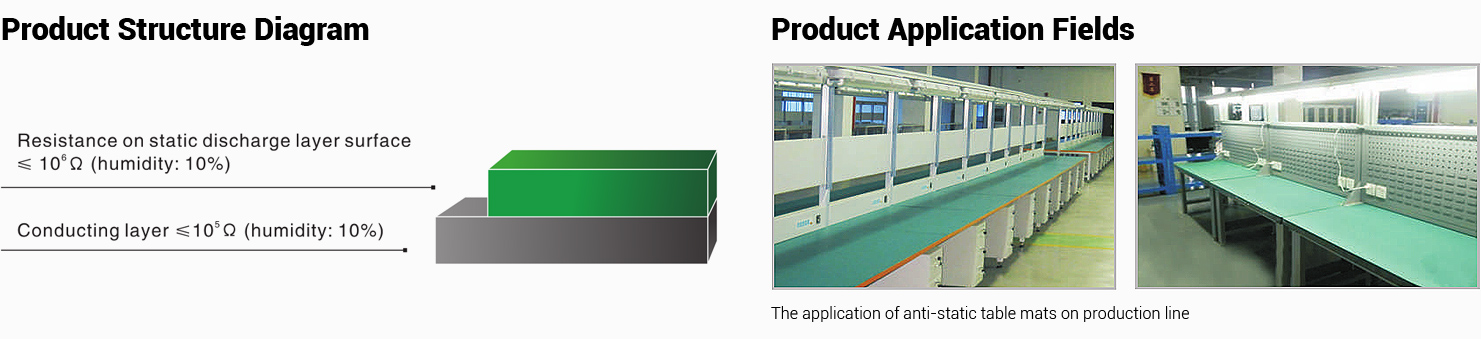

Permanent anti-static mat performance and parameter

Static dissipative layer	Static dissipative layer Ω	≤10⁷Ωcm	0. 8m10m2rm 1. 0m10m2mm 1.2m10m2mm
	Capacitance voltage	<30V
Black conductive layer	Static dissipative layer Ω	≤10⁵Ω
	Capacitance voltage	<20V
Electrostatic voltage decay period	5000-500V	<0,4S
Volume resistance	<10⁷Ω
test environment	Humidity 30% temperature 23 ° C
Antistatic life	Permanently unaffected by temperature and humidity

Permanent anti-static mat introduction：

Permanent anti-static mat is a new anti-static product that is newly produced by our factory. It is a high-end product for highly-demanded units involved in military industry and spaceflight in China; moreover, it is featured with high technical content and static discharge method of traditional anti-static mat, for which we gain patent for invention of new national material. The work principle is to realize static discharge through strip galvanic circle in materials generated from fusion and interinfiltration between metal carbon nanometer ion and resin under high temperature; it changes the traditional static discharge method based on active positive ion removing from product surface and combining with air humidity. The new permanent anti-static mat is free from influence from temperature and humidity, so as to guarantee effective, stable and continuous static discharge on circumstance of low humidity.
